Controllers


Display Type: List

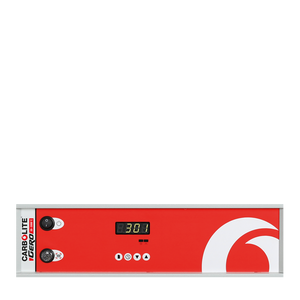

Product: Controller 301
Features:
  • Standard furnace controller
  • 99 hour process timer, 5 timer functions
  • PID control for single ramp to set point
Display Type: List
Product: Controller CC-T1
Features:
  • Programmable touch screen controller/recorder
  • Programming of up to 24 segments
  • Storage for up to 10 programs
Display Type: List
Product: Controller 132
Features:
  • Auxiliary over-temperature protection controller
  • Standard furnace controller
Display Type: List

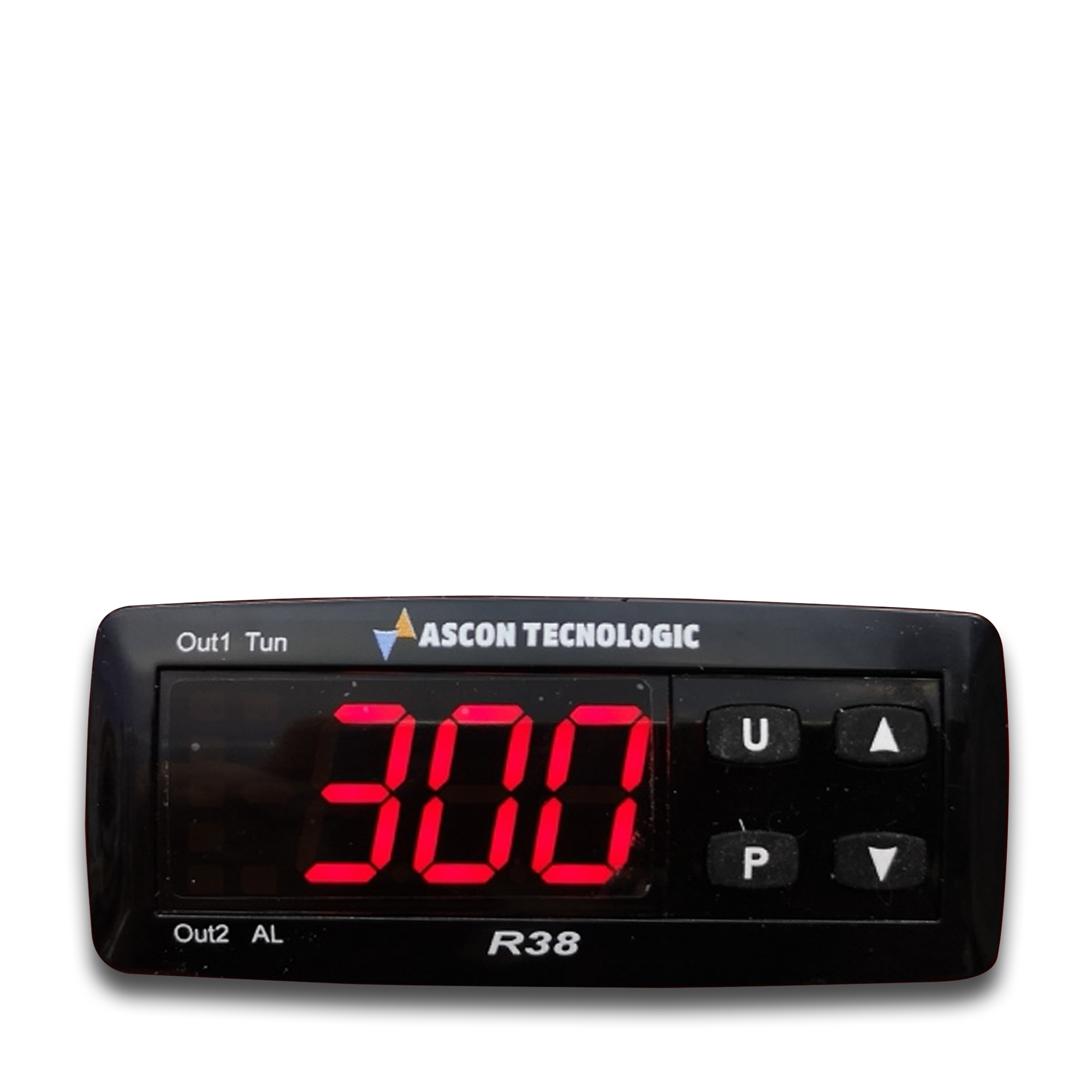

Product: Controller R38
Features:
  • Standard oven controller
  • PID set point control
  • Programmable control in 24 segments
  • Storage for up to 10 programs
  • Certified for cybersecurity communications robustness
  • Programmable control with 24 segments
  • 2 relay operated options
  • Certified for cybersecurity communication robustness
Display Type: List

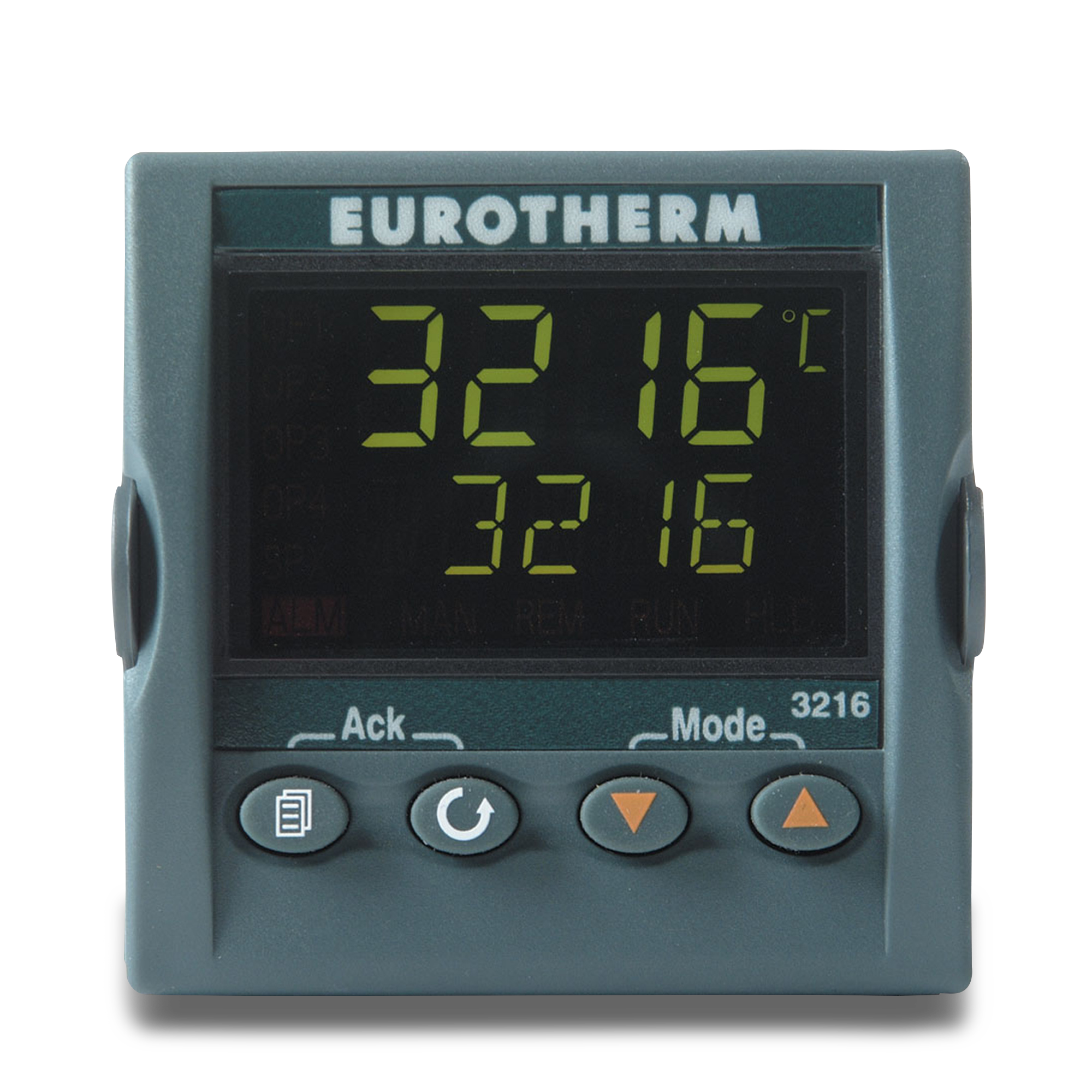

Product: Controller 3216
Features:
  • Programmable controller
  • Programming of up to 8 segments
  • Storage for up to 5 programs
Display Type: List

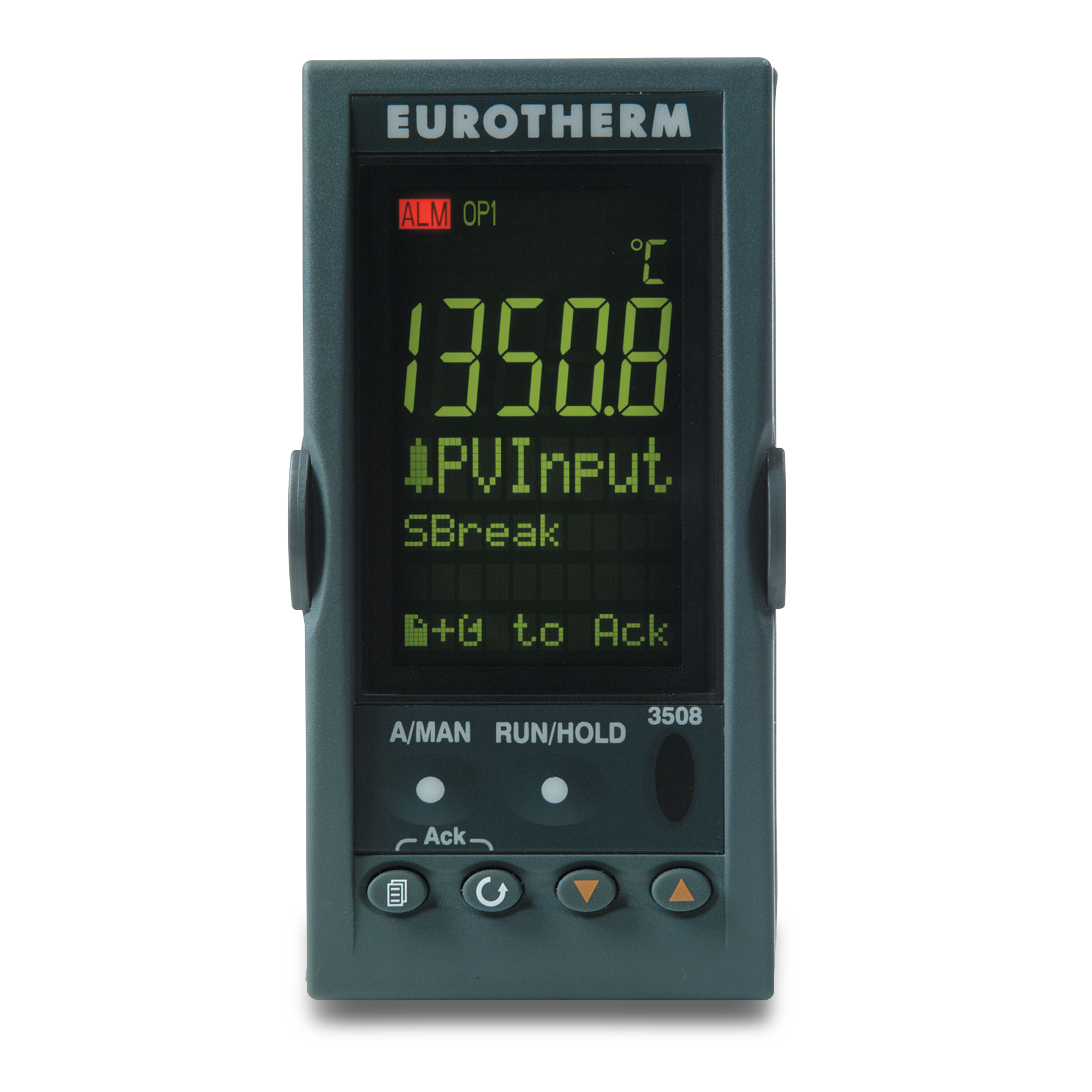

Product: Controller 3508
Features:
  • Programmable controller
  • Programming of up to 20 segments
  • Storage for up to 25 programs
Display Type: List

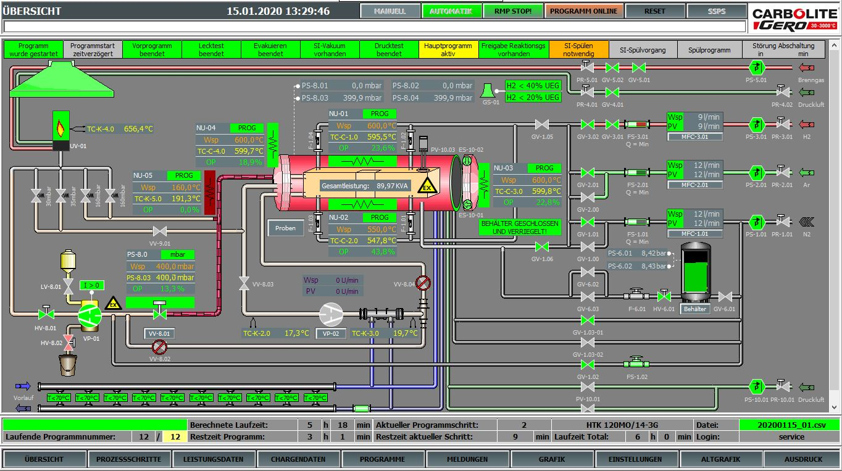

Product: Controller WinCC
Features:
  • Advanced programmable controller/recorder
  • Programming of up to 30 segments
  • Storage for up to 50 programs
Display Type: List

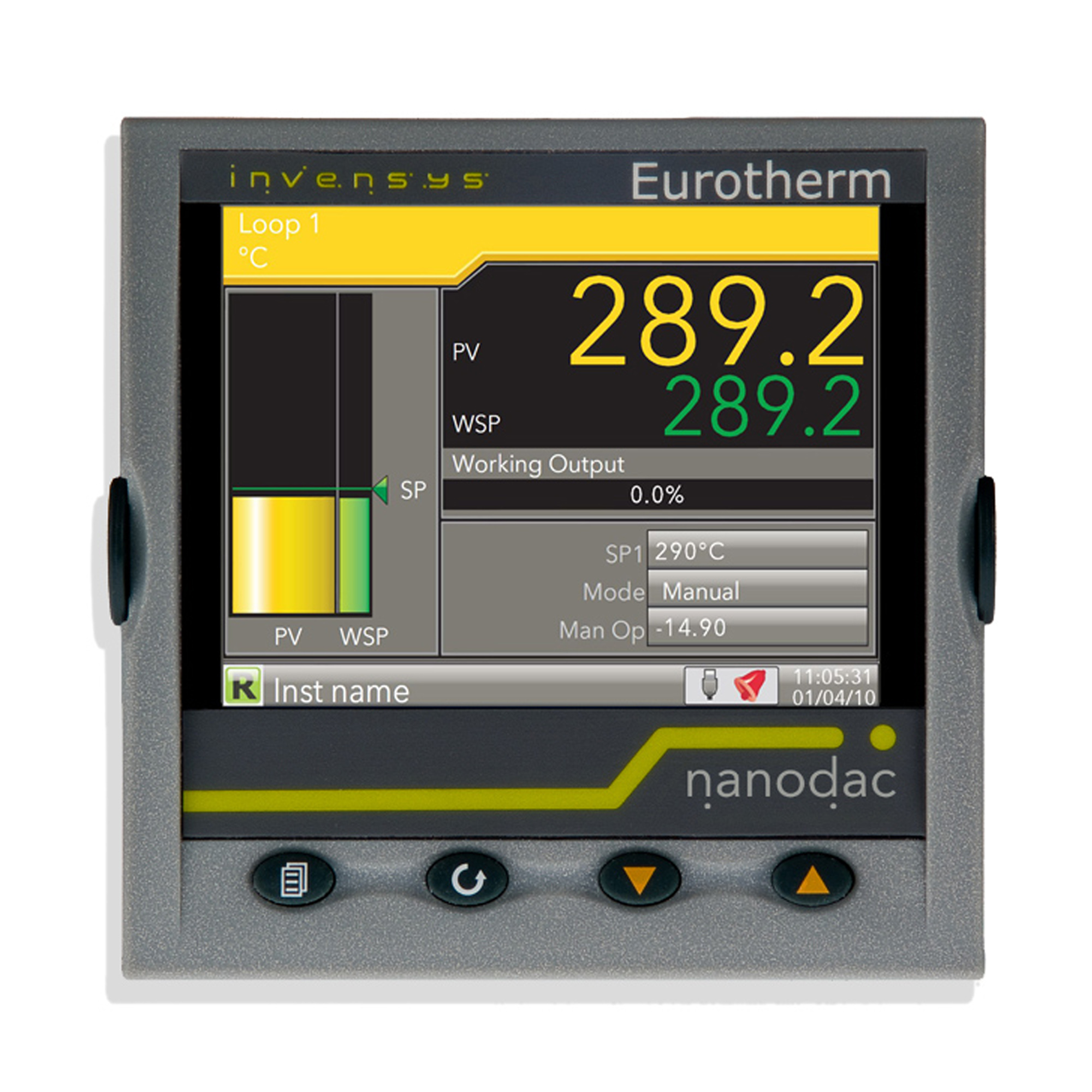

Product: Controller nanodac
Features:
  • Advanced programmable controller/recorder
  • Programming of up to 25 segments
  • Storage for up to 100 programs
  • Easy to use 12" panel
  • Operates with manual and automatic mass flow controllers
  • Remote access to view your process at any time and from anywhere
  • Full furnace and process control with 19“ panel
  • Record all values, events, and faults
  • Remote access to view and operate your process at any time and from anywhere

Temperature Control - FAQ

How accurate is the oven temperature?

There are many aspects of temperature accuracy to consider. For instance, the temperature control system is within +/-0.5C. However this does not allow for temperature spread within the chamber, in order to test this the chamber is mapped using thermocouples, this is referred to as the Temperature Uniformity Survey or TUS. The best ovens are within <+/-5C. Other factors that will affect the accuracy of the oven include air exchange or usable volume.

Will an oven have the same uniformity at high and low temperatures ?

Oven temperature distribution improves the lower the setpoint value. This is due to the deltaT between room temperature and setpoint value being much closer, reducing thermal loss into the outside environment. It's also because air is "thicker" at lower temperatures and therefore easier to move around.

Can the oven run hotter than the setpoint value?

Where this is a concern for safety reasons or to protect the product inside the oven, you should configure the oven with an Over-Temperature Protection device. These will cut out if a preset temperature is exceeded. Once thing to remember is that the over temp cannot stop an exothermic reaction. If you have a specific concern around fire hazards and over temp then the process needs to be taken into consideration.

Can I perform temperature steps in an oven automatically?

Yes, ovens come with a range of controllers that allow a variety or steps, ramps and dwells. You need a programmer to perform this type of function. You can also data log with certain control modules allowing you to recall data after a run.
